Home EquipmentPininsert

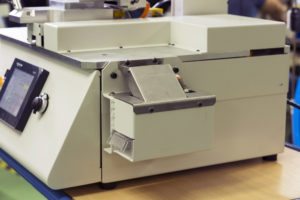

PININSERT 2100

Pininsert 2100 is a pneumatic or servo-drive table-mount machine for semi-automatic pin insertion into various electrical components. It was designed as stand-alone or inline machine for small and medium production volumes (up to 3 600 pins per hour).

Components are located on the manually-adjustable working table. Operator moves it to the work zone where pins are inserted one at a time in automatic (option), step-by-step and manual operation modes. Table can be motorized on demand.

Interchangeable insertion head makes it possible to produce various applications on one machine.

Camera and laser control assures correct positioning of the components and pin.

DOWNLOAD PDF

Technical characteristics

Power supply
220V. 50Hz single-phase 10A
Power
0,5 kW
Air pressure
6b
Instantaneous cycle time
500 ms/pin
Max pin’s length (standard version)
25 mm
Max pin’s length (long version)
60 mm
Max pin’s cross section
1.5 mm
Time of head insertion change
10 min.
Time of set of part change into insertion head
15 min.
Standard motorized X axis (option)
150 mm stroke
Standard motorized Y axis (option)
150 mm stroke
Weight (basic)
70kg
Dimensions (W x D x H)
400 x 400 x 700 mm
CE conformity

STANDARD FEATURES
OPTIONS
CONNECTIONS EXAMPLES

STANDARD FEATURES

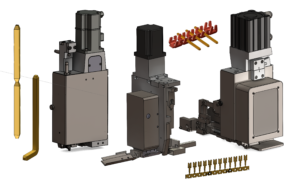

Insertion head

Insertion head, pneumatic or servo motor, comprises of tool set, which could be changed to another one according to the application.
There are several types of insertion heads according to the pin types: end-to-end, right angle, U-band (bandolier) or terminals.
Insertion accuracy is highly stable and equals ±0,05 mm (CPK > 1.68). When using servomotor, insertion depth is controlled by encoder.
Insertion technique involves the use of precut round or square wire with acceptable section from 0,3 to 1,5 mm (with servo-drive head) or 1 mm (with pneumatic head).
Indexation system

The pin is fixed in the insertion head one step before cutting position, which decreases the tolerance of pin length and thus provides cutting and insertion precision.

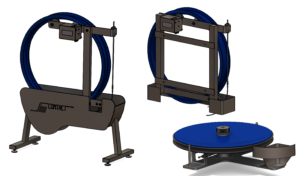

Pins unreeling systems

There are various pin feeding systems according to each pin type: end-to-end pins floor-mount unreeler, carrier pins unreeler for bandolier pins, terminal unreeler.

OPTIONS

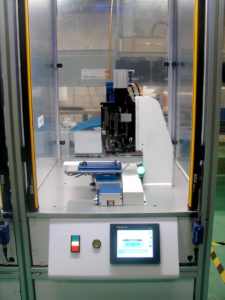

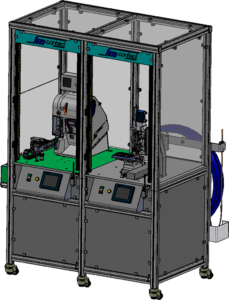

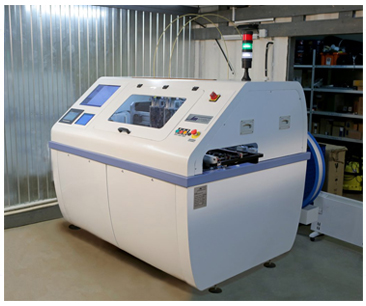

Frame & cabinet

Machine and all its components can be integrated into floor mount frame with PLC and HMI units for operation control.
Lighting & safety beams

Safety beams can be installed on the frame to detect foreign object presence and to stop the machine. This feature as well as work area lighting guarantees operator’s safety.

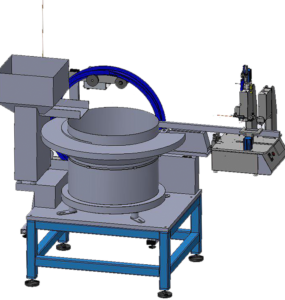

Vibrating feeder for connectors

Option for in-bulk connectors feeding. A bulk supply hopper automatically doses parts into the vibratory bowl and inline vibrating conveyor.

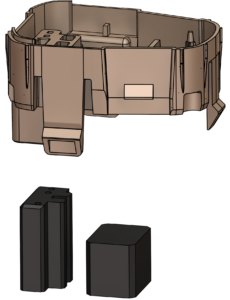

Alignment supports for components

Work table can be equipped with alignment supports. Components are mount onto this support to simplify its positioning.
Automatic motorized positioning

Pininsert 2100 could be equipped with motorized table. In this case its movement to the work area (X axis) and/or from one insertion position to another (Y axis) is performed automatically with a step motor.
Components position laser control

Components position laser control detects wrong positioning, sends an error message on the screen and doesn’t let the machine work till the component is placed correctly.
Low/high definition camera

Camera with integrated logics for pin insertion height control. Choice of definition depends on the dimensions of the components.
Pin presence laser control

Pin presence laser control lets the machine differ empty slots and already inserted pins. New pins are inserted into the empty slots only and other positions are skipped.
Insertion force control

System controls each insertion and compares it to the reference values of insertion force. In case of deviation machine stops automatically or gives an alarm sound.
Force data export to Excel

System allows to download all the insertion data in Excel format.
Poka Yoke

Parts indicated by laser or insertion force sensor as defective are to be thrown into special container. Until these parts are detected inside of the container, the machine wouldn’t continue operation.
Barcode reader

Need more automatic features? Please check advanced versions:

APPLICATION FIELDS

COMPONENTS TYPES

ALTERNATIVE ENERGY
AUTOMOTIVE
ELECTRONICS
PRINTING INDUSTRY
TELECOMMUNICATIONS
TEXTILE INDUSTRY

PIN & COIL FRAME
PIN & METAL
PIN & PCB
PIN & PLASTIC COMPONENT
PIN & PLASTICS COMPONENT & PCB
CUSTOMIZED CONNECTORS
